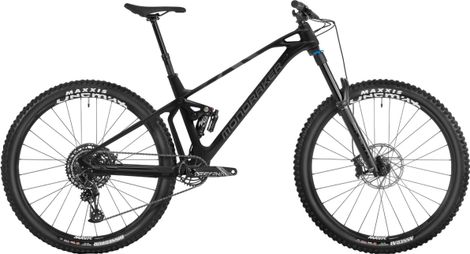

Mondraker Superfoxy R Sram SX/NX 12S 29'' Red Black 2024 Mondraker
€3,199.99
RRP €4,999.00
€3,199.99
RRP €4,999.00
€3,199.99
RRP €4,999.00
Save with our perfect combination
Save up to with our perfect combination
Our perfect combination
Add the pack
Your item
Description
What size do you need?
Choosing the right sized bike depends on the type of bike, your height, your riding style, and your preference. A correct fitting bike will be more comfortable, more efficient and more fun to ride
Measure yourself accurately
To get started, measure your height and use the size chart available on each product description.
What to do if you are in between bike sizes?
If you are on the edge of two different bike sizes, don't worry, you'll probably be ok on either size (rather than thinking that one size will be awful and the other will fit). Indeed, bikes are adjustable: the seatpost can slide up and down, the saddle can move backwards and forwards and you can even switch out parts like the stem for different sized ones to help the bike fit better.
Finding out whether or not you should pick a bigger or a smaller frame is sometimes as simple as personal preference, but there are a few simple ways to work out which might suit best:
- If you’re flexible, you might prefer a shorter head tube, so the smaller size might work out better for you. You can use a longer stem to make the reach more comfortable.
- On a bigger bike, the reach to the handlebars will be longer. This means that if you have proportionally longer arms, you might be more comfortable on a bigger frame.
Still confused? Contact us
| Please note that specifications are subject to change without notice, based on component availability and other factors. |
This is the first Summum of the entire range, and it's a bike that results from more than 20 years of experience in building high performance DH bikes. And this is not nothing, with several podiums in the World Cup and World Championship 2016 in Val di Sole, monopolizing the entire podium of that year.
A historic moment that proves that even the most basic of the range can reach the highest level.
It is not for nothing that the suspension system and the main features are identical to those of the Summum Carbon RR with which our riders of the MS Mondraker Team compete. The geometry kit is optional.
Product highlights :
- Alloy Stealth Evo aluminum frame with 160 mm of travel.
- Sram DB8 hydraulic disc brakes, 220/203 mm.
Details :
| Frame | Aluminium: Stealth Evo Aluminium 6061 |
| Fork | Öhlins RXF 38 M.2 29, 170 mm, TTX18 Twin Tube cartridge, tapered pivot, 15 x 110 mm Boost axle, 44 mm offset. Settings: high-speed compression with climb mode, low-speed compression, rebound, air preload, ramp air chamber. |
| Shock | Öhlins TTX Air 205x65 mm. Settings: high-speed compression with climb mode, low-speed compression, rebound, air preload. Trunnion top mount, 22.2x10 mm lower bushes. |
| Derailleur lever | Sram Trigger SX Eagle, X-Actuation 1:1, 1x12-speed |
| Rear derailleur | Sram NX Eagle, Roller bearing clutch Type 3, cage lock, long cage, X-actuation 1:1, 12-speed |
| Cassette | Sram PG-1230, 11-50T |
| Chain | Sram SX Eagle 12 speed, Powerlock |
| Crankset | Sram Truvativ Descendant 7K Eagle, SuperBoost, DUB axle, direct-mount chainring 32 dts, steel, X-Sync 2 |
| Bottom bracket | Sram DUB BSA, sealed bearings, 73 mm |
| Brakes | Sram DB8, 4-piston oversize caliper, 6-hole Centerline 220/203 mm IS disc, sintered metal pads |
| Wheelset | E*thirteen LG1 Enduro, IW30 Hookless, 6069 welded aluminium, 30 mm internal width, tubeless compatible, 28 spokes |
| Hubs | Front: e*thirteen Boost 15x110 mm, triple reinforced, fully machined aluminium, IS 6 holes / Rear: e*thirteen Superboost 12x157 mm, triple sealed, fully machined aluminium with 6 degree engagement, IS 6 holes, HG freewheel |
| Tires | Front: Maxxis Assegai 29x2.5''WT, tubeless compatible, 3C MAXX GRIP rubber, DH casing, 60x2TPI, soft pushrod / Rear: Maxxis Dissector 29x2.4''WT, tubeless compatible, 3C MAXX GRIP rubber, DH casing, 60x2TPI, soft pushrod |
| Handlebar | OnOff Sulfur 1.0, 6061 double-reinforced aluminum, curvature: 20 mm, width: 800 mm, 9° bend, 5° rise, 31.8 mm bore |
| Grips | Onoff Twin, single lock, 135 mm |
| Stem | OnOff Sulfur FG 30mm 0º, forged alloy 6061, bore 31.8 mm |
| Headset | OnOff Saturn tapered for 1-1/8" to 1-1/2" steering bush, ACB sealed bearings, top 41x30.2x7x45ºx45º, bottom 51.9x40x8x45ºx45º, aluminium 6061, spacer 2 x 6 mm |
| Saddle | SDG BEL-AIR 3.0, LPU foam, steel rails |
| Seatpost | ONOFF Pija dropper internal, diameter 31.6 mm, 1X remote control with bearing |
| Weight | 17.2 kg |
Geometries :
| Frame size | S | M | L | XL |
| Wheel size (inches) | 29 | 29 | 29 | 29 |
| Seat tube (mm) | 380 | 420 | 470 | 510 |
| Top tube (mm) | 605 | 625 | 650 | 670 |
| Chainstay (mm) | 445 | 445 | 445 | 445 |
| Head tube (mm) | 100 | 110 | 130 | 130 |
| Head tube angle (°) | 65 | 65 | 65 | 65 |
| Seat tube angle (°) | 76 | 76 | 76 | 76 |
| Wheelbase (mm) | 1224 | 1245 | 1273 | 1293 |
| Stack (mm) | 621 | 621 | 639 | 639 |
| Reach (mm) | 450 | 470 | 490 | 510 |
| Cranks (mm) | 170 | 170 | 175 | 175 |
| Seatpost travel (mm) | 95-125 | 120-150 | 140-170 | 170-200 |
MORE INFORMATION
See our best MTBs.
Check out our Enduro MTB Range
Features
| Frame material | Alloy |
| Groupset | Sram NX/SX Eagle |
