Cube
★★★★★
★★★★★

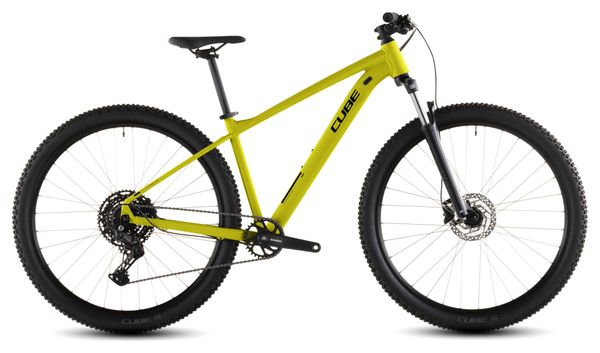

Cube Aim Pro Hardtail MTB Shimano 10S 29'' Lizard Green 2026 Cube
€649.00
€649.00
€649.00
€649.00
Color :
Green
+ 3 Colors
Save with our perfect combination
Save up to with our perfect combination
Our perfect combination
Add the pack
Your item
Description
What size do you need?
Choosing the right sized bike depends on the type of bike, your height, your riding style, and your preference. A correct fitting bike will be more comfortable, more efficient and more fun to ride
Measure yourself accurately
To get started, measure your height and use the size chart available on each product description.
What to do if you are in between bike sizes?
If you are on the edge of two different bike sizes, don't worry, you'll probably be ok on either size (rather than thinking that one size will be awful and the other will fit). Indeed, bikes are adjustable: the seatpost can slide up and down, the saddle can move backwards and forwards and you can even switch out parts like the stem for different sized ones to help the bike fit better.
Finding out whether or not you should pick a bigger or a smaller frame is sometimes as simple as personal preference, but there are a few simple ways to work out which might suit best:
- If you’re flexible, you might prefer a shorter head tube, so the smaller size might work out better for you. You can use a longer stem to make the reach more comfortable.
- On a bigger bike, the reach to the handlebars will be longer. This means that if you have proportionally longer arms, you might be more comfortable on a bigger frame.
Still confused? Contact us
| Please note that specifications are subject to change without notice, based on component availability and other factors. |

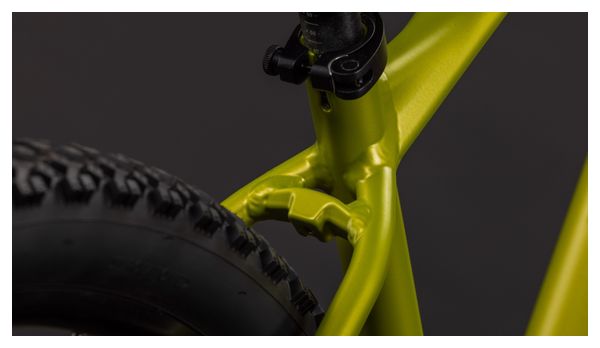

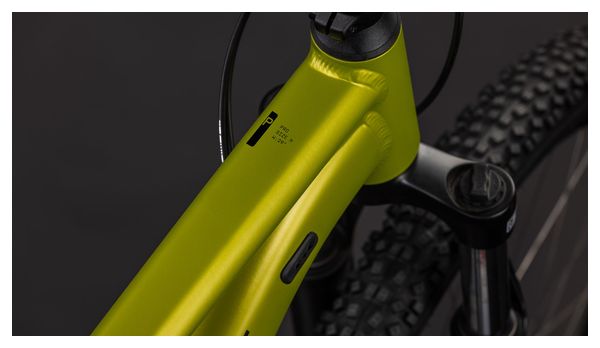

Beauty is more than skin deep: the Cube Aim's sleek looks are thanks to its Smooth Welded head tube and seat tube junctions, flattered by Internal Cable Routing to reduce clutter. It incorporates a threaded bottom bracket and a flat disc mount that integrates seamlessly with our kickstand mount, plus integrated mounting points for Acid mudguards and carrier. Carefully thought-out geometry includes a lower top tube for more confident handling, and there's plenty of room to run wide, grippy and comfortable 2.25" tires. Our Size Split system has an expanded range, too, so however tall you are there'll be an Aim that fits perfectly.
Got an off-road itch that needs scratching? The Cube Aim Pro could be the relief you're looking for. With its grippy 2.25" tires and 100 mm suspension fork, it's got the comfort and control you'll need to keep riding when you reach the end of the road. Wide-ratio Shimano Cues 10-speed gears will help you see off the steepest climbs, and strong hydraulic brakes put you in control on the descents. Best of all, Size Split makes it easy to find the perfect fit for every rider – and the frame is even ready to accept a future dropper post upgrade.
Main features:
- Versatile, simple, adaptable.
- Whether you're commuting, touring or adventuring off-road, there's an Aim that's perfectly suited to your needs.
- Aluminium Lite frame, AMF (Advanced Mechanical Forming).
- Shimano Cues U6000 1x10-speed drivetrain.
- Shimano MT200/UR300 hydraulic disc brakes, 160/160 mm.
Features:
| Frame | Aluminium: Aluminium Lite, AMF, Double Butted, Internal Cable Routing, Tapered Head Tube, Flat Mount Brake, SIC Mount, FM Kickstand Mount, Width tire maximum: 60 mm |

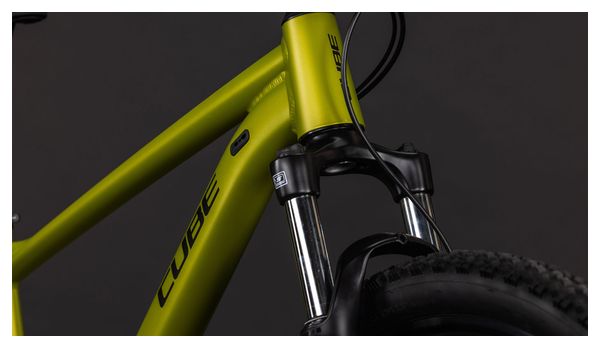

| Fork | SR Suntour XCT, 100 mm travel |
| Shifter | Shimano Cues SL-U6000, Rapidfire-Plus, 1x10-speed |
| Rear Derailleur | Shimano Cues RD-U6000-GS, 10-speed |
| Cassette | Shimano CS-LG300, LinkGlide, 11-48T |
| Chain | KMC xGlide |

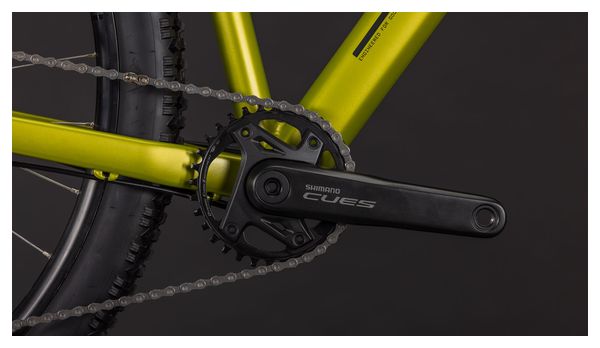

| Crankset | Shimano Cues FC-UT400-1, 32T |
| Bottom Bracket | Thun Paso-ML, 73 mm BSA |
| Brakes | Shimano BR-MT200/UR300, Hydr. Disc Brake, PM/FM (160/160) |
| Wheelset | Acid Pro 25, 32/32 Spokes, QR/QR, Tubeless Ready |
| Tires | Cube MTB, 29x2.25" |
| Handlebar | Cube Rise Trail Bar, 680 mm |
| Grips | Acid Icon |
| Stem | Cube Performance Stem, 31.8 mm, 6° |
| Headset | Cube FPH868p, Tapered, Semi-Integrated |
| Saddle | Acid Venec Lite |
| Seatpost | Cube Performance Post, 27.2 mm |
| Pedals | Cube PP MTB |
| Weight | 15.1 kg |
| Weight Limit | 140 kg: the maximum system weight consists of the bike, rider and equipments |
| Color | lizard´n´black |
| Reference | 140225 |
Geometries:
| Frame Size | XS | S | M | L | XL | XXL |
| Seat Tube (mm) | 340 | 370 | 420 | 470 | 515 | 560 |
| Top Tube (mm) | 555 | 575 | 595 | 615 | 635 | 655 |
| Head Tube Length (mm) | 108 | 111 | 111 | 122 | 142 | 157 |
| Chain Stays (mm) | 427 | 427 | 450 | 450 | 450 | 450 |
| Head Tube Angle (°) | 68.5 | 68.5 | 68.5 | 68.5 | 68.5 | 68.5 |
| Seat Tube Angle (°) | 74 | 73.5 | 73.5 | 73.5 | 73.5 | 73.5 |
| Wheelbase (mm) | 1068 | 1082 | 1125 | 1146 | 1168 | 1190 |
| Stack (mm) | 595 | 598 | 627 | 637 | 656 | 670 |
| Reach (mm) | 384 | 398 | 409 | 426 | 441 | 457 |
| Wheel Size (inches) | 27.5 | 27.5 | 29 | 29 | 29 | 29 |
MORE INFORMATION
See our best MTBs.
See all Cube mountain bikes available.
Features
| Frame material | Alloy |
| Groupset | Shimano Cues |
| Made in | Allemagne |
