Orbea
★★★★★
★★★★★

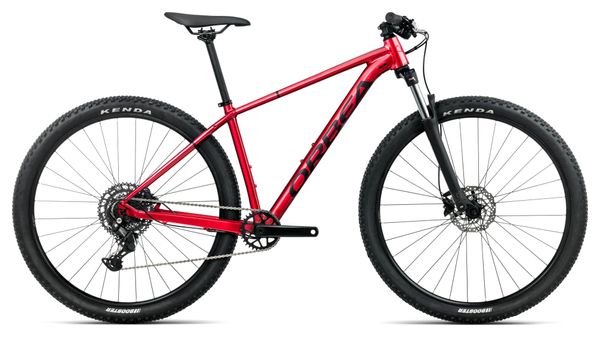

Orbea Onna 40 Hardtail MTB Shimano Cues 9S 29'' Burning Red 2026 Orbea
€649.00
€649.00
€649.00
€649.00
Color :
Red
+ 1 Color
Save with our perfect combination
Save up to with our perfect combination
Our perfect combination
Add the pack
Your item
Description
What size do you need?
Choosing the right sized bike depends on the type of bike, your height, your riding style, and your preference. A correct fitting bike will be more comfortable, more efficient and more fun to ride
Measure yourself accurately
To get started, measure your height and use the size chart available on each product description.
What to do if you are in between bike sizes?
If you are on the edge of two different bike sizes, don't worry, you'll probably be ok on either size (rather than thinking that one size will be awful and the other will fit). Indeed, bikes are adjustable: the seatpost can slide up and down, the saddle can move backwards and forwards and you can even switch out parts like the stem for different sized ones to help the bike fit better.
Finding out whether or not you should pick a bigger or a smaller frame is sometimes as simple as personal preference, but there are a few simple ways to work out which might suit best:
- If you’re flexible, you might prefer a shorter head tube, so the smaller size might work out better for you. You can use a longer stem to make the reach more comfortable.
- On a bigger bike, the reach to the handlebars will be longer. This means that if you have proportionally longer arms, you might be more comfortable on a bigger frame.
Still confused? Contact us
| Please note that specifications are subject to change without notice, based on component availability and other factors. |
Orbea designed the Onna for the rider who wants to conquer the trail. A bike geometry that maximizes efficiency and control is perfect for any rider who is learning to love MTB.
Onna boasts balanced geometry with perfect trail manners to maximize the fun for all riders. Add wheel sizes matched to frame size give perfect fit for all riders and the Onna is ready for the trail ahead. With tapered headtube to give a wide choice of 100 mm suspension forks and hydraulic disc brakes across all the range, Onna is equipped for the ride. With plenty of room for wide mountain bike tires for comfort and grip, Onna isn't going to limit your adventures. Onna´s advanced aluminum frame with shaped tubes allows us to fine tune the ride quality. Stiff enough to be fast and responsive, compliant enough to be comfortable and controlled.
The perfect ride starts with the perfect fit, and to help you find yours, Onna is available in four frame sizes matched with two wheel sizes.
Main features:
- Orbea Onna is equipped for the ride.
- Advanced aluminum frame.
- Shimano Cues U4000 1x9-speed drivetrain.
- Shimano MT200 hydraulic disc brakes.
Features:
| Frame | Aluminum: Orbea Onna Alloy, Dropout 9x135 mm, BSA BB, Internal cable routing |
| Fork | SR Suntour XCT30, Coil, QR 9x100 mm, 100 mm travel |
| Shifter | Shimano Cues SL-U4000, 1x9-speed |
| Rear Derailleur | Shimano Cues U4000, GS, Shadow RD, 9-speed |
| Cassette | SunRace, 11-46T |
| Chain | KMC eGlide |
| Crankset | Forged alloy, 32T |
| Brakes | Shimano MT200, Hydr. Disc Brake |
| Wheelset | WH 2.1, Alloy, 32H, 29" |
| Tires | Kenda Booster, 30 TPI, 29x2.40" |
| Handlebar | Alloy, 31.8 mm, Flat, Width 740 mm, Sweep 9° |
| Stem | Alloy, 7º |
| Headset | 1"-1/2 Semi-Integrated |
| Saddle | Fortune QF-3091 |
| Seatpost | SP 0.6, Alloy, 27.2 mm, Setback 0 mm |
| Pedals | VP-537 Black |
| Weight | --- |
| Color | RA - Burning Red (Gloss) - Black (Matt) |
| Reference | T206 |
Geometries:
| Frame Size | S | M | L | XL |
| Seat Tube (mm) | 388 | 430 | 470 | 540 |
| Top Tube (mm) | 561 | 589 | 614 | 646 |
| Head Tube Length (mm) | 95 | 95 | 105 | 120 |
| Chain Stays (mm) | 440 | 440 | 440 | 440 |
| Head Tube Angle (°) | 68.5 | 68.5 | 68.5 | 68.5 |
| Seat Tube Angle (°) | 74.5 | 74.5 | 74.5 | 74.5 |
| Wheelbase (mm) | 1093 | 1121 | 1146 | 1180 |
| Stack (mm) | 617 | 617 | 627 | 641 |
| Reach (mm) | 390 | 418 | 440 | 468 |
| Wheel Size (inches) | 29 | 29 | 29 | 29 |
MORE INFORMATION
See our best MTBs.
Features
| Frame material | Alloy |
| Groupset | Shimano Cues |
| Made in | Espagne |
