Position One
★★★★★
★★★★★

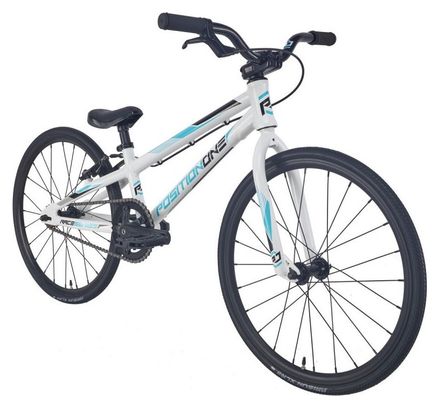

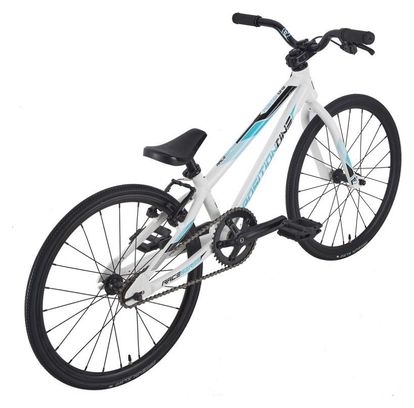

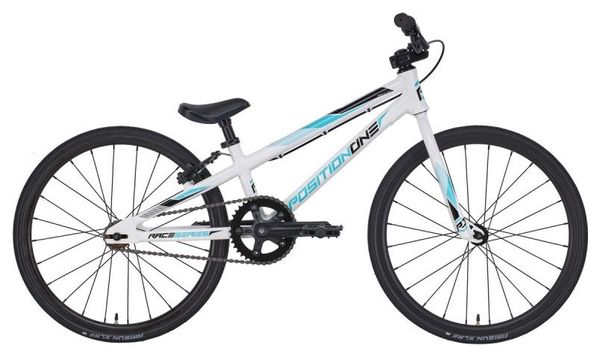

BMX Race Position One Race Mini White 2024 Position One
€479.99
similar products
Save with our perfect combination
Save up to with our perfect combination
Our perfect combination
Add the pack
Your item
Description
| Please note that specifications are subject to change without notice, based on component availability and other factors. |
The Position One Race has been specially designed to introduce beginners to BMX racing with a range of geometry, offering the best value for money in an entry-level BMX. Featuring a 6061 aluminum frame with integrated steering, it is equipped with a Chromoly fork and handlebars, a 3-piece crankset, double wall rims, V-Brake braking and Arisun XLR8 tires.
Main features:
- Aluminum frame 6061-T6.
- Integrated head tube.
- 3-piece aluminum crankset.
- Chromoly fork and handlebar.
- Double wall rims.
- Euro box.
- Mini size: Top Tube 17.25" (110 cm - 127 cm)
Features:
| Frame | Position One Race Mini 17.25'', Alu 6061 T6, Integrated Headset 1-1/8 |
| Fork | Position One Cr-mo, 1'' Pivot |
| Crankset | Steel 38T 5 points BCD 110mm thickness 3mm |
| Sprocket | 16T |
| Chain | KMC Z33 1/2 "x3/32 |
| Crankset | 3 pieces 140mm Alu |
| Brake levers | Mini Alu |
| Brakes | V-Brake 95mm |
| Rims | Double wall 24H 20''x1-1/8 |
| Hubs | F: Mini 24H, Axle 10mm, Bearings double contact seals / R: Mini 24H, Axle 10mm, Bearings double contact seals |
| Tires | Arisun XLR8 20''x1-1/8 |
| Handlebars | Cr-mo Height 2.25", Width 20", 8° Back Sweep, 2° Up Sweep |
| Handles | Single Ply 92mm without flange |
| Stem | Alu 6061 T6 40mm |
| Headset | Integrated 1-1/8'' with 1" reducer |
| Saddle | Mini combo 25.4mm |
| Crankcase | Euro axle JIS square 113mm |
| Pedals | Platform axle 9/16 |
| Weight | 7.10 kg |
| Colors | White |
Geometries :
| Size | Micro | Mini | Junior | Expert | Pro |
| Wheel size (inches) | 18 | 20 | 20 | 20 | 20 |
| Saddle tube (mm) | 203.2 | 219.7 | 222.2 | 222.25 | 234.95 |
| Top tube (mm) | 410.2 | 438.1 | 482.6 | 501.6 | 520.7 |
| Steering sleeve (mm) | 100 | 100 | 100 | 100 | 110 |
| Base length (mm) | 275.6 | 317.5 | 330.2 | 336.5 | 361.95 |
| Steering angle (°) | 71 | 72 | 73 | 74 | 74 |
| Seat tube angle (°) | 69 | 70 | 72 | 72 | 72 |
| Bottom bracket height (mm) | 231.1 | 269.2 | 269.2 | 279.4 | 279.4 |
