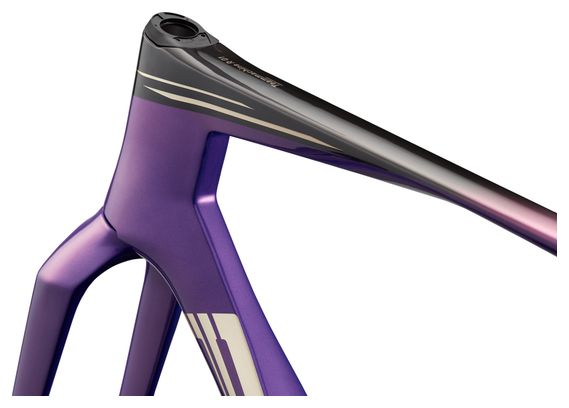

BMC Teammachine R 01 Purple/Black Carbon Frame Kit 2027 BMC
€4,999.00
€4,999.00
€4,999.00
€4,999.00
€4,999.00
€4,999.00
Save with our perfect combination
Save up to with our perfect combination
Our perfect combination
Add the pack
Your item
Description
What size do you need?
Choosing the right sized bike depends on the type of bike, your height, your riding style, and your preference. A correct fitting bike will be more comfortable, more efficient and more fun to ride
Measure yourself accurately
To get started, measure your height and use the size chart available on each product description.
What to do if you are in between bike sizes?
If you are on the edge of two different bike sizes, don't worry, you'll probably be ok on either size (rather than thinking that one size will be awful and the other will fit). Indeed, bikes are adjustable: the seatpost can slide up and down, the saddle can move backwards and forwards and you can even switch out parts like the stem for different sized ones to help the bike fit better.
Finding out whether or not you should pick a bigger or a smaller frame is sometimes as simple as personal preference, but there are a few simple ways to work out which might suit best:
- If you’re flexible, you might prefer a shorter head tube, so the smaller size might work out better for you. You can use a longer stem to make the reach more comfortable.
- On a bigger bike, the reach to the handlebars will be longer. This means that if you have proportionally longer arms, you might be more comfortable on a bigger frame.
Still confused? Contact us

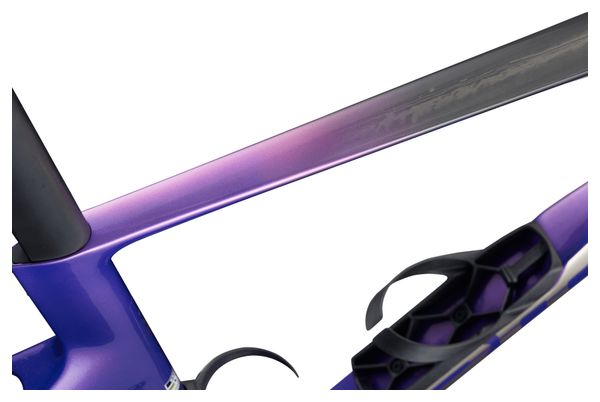

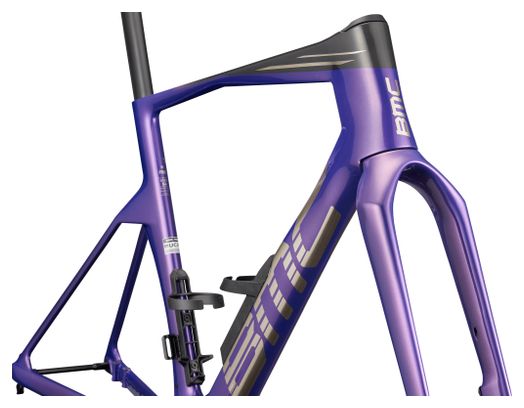

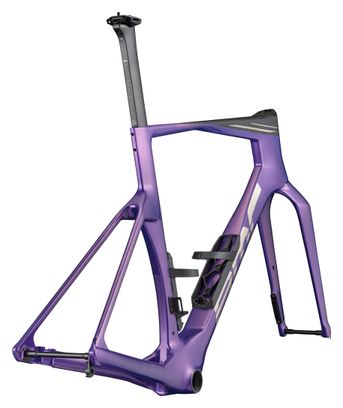

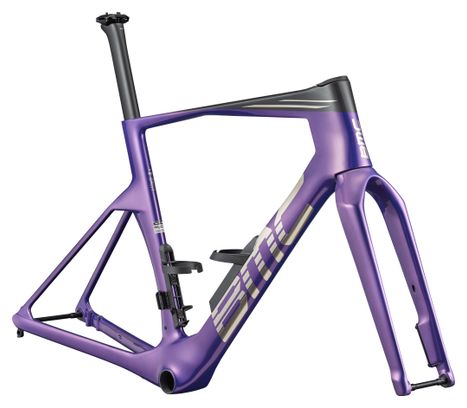

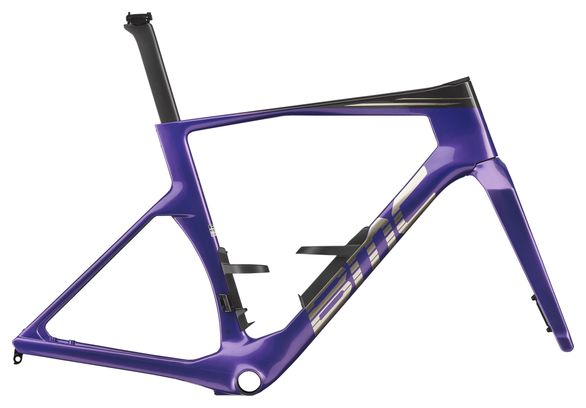

The Teammachine R 01 VAR 3 frame kit: uncompromising performance, ready for a build that’s just as demanding. By taking the race-winning performance and offering it in an exclusive “Metallic Blue Purple / Carbon” finish, it becomes the ideal foundation for creating the build you’ve always dreamed of.

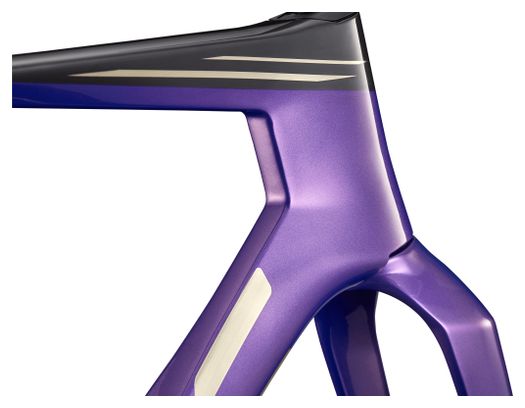

Every second gained thanks to its aerodynamics, every watt of power transferred into a winning sprint, every corner negotiated to perfection, and every road imperfection smoothed out: the Teammachine R 01 is ready for an exceptional build. Lightweight and developed with Red Bull Advanced Technologies, this frame redefines what a road bike can achieve. To maximize speed, the fork legs have been spread apart to form a distinctive ultra-wide front face (Halo), allowing turbulent air to be directed away from the frame and aerodynamic drag to be minimized.
Product highlights:
- 01 Premium Carbon frame with Aerocore Design – maximum aerodynamic performance and integrated bottle cages.
- Developed with Red Bull Advanced Technologies – WorldTour-level efficiency, stiffness, and aerodynamics.

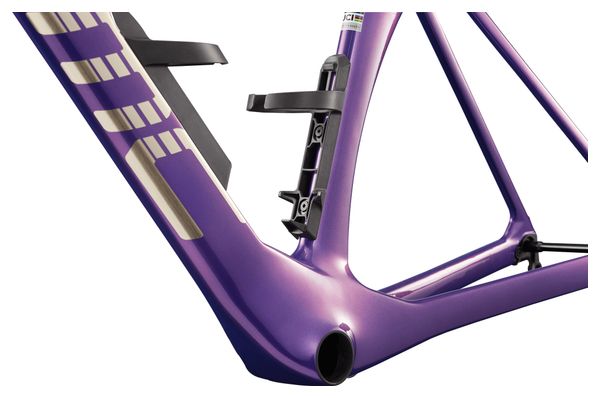

- “Mariana” bottom bracket shell – the deepest ever developed to optimize airflow (UCI-approved).
- ICS (Integrated Cockpit System) – internal cable routing for seamless integration and a clean aesthetic.

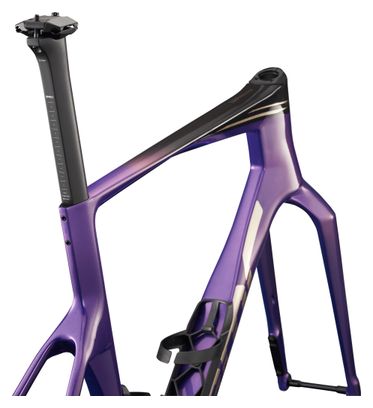

- Optimized seatpost – thinner, deeper, lighter, and compatible with an integrated license plate mount.
Details:
| Frame | Teammachine R 01 | 01 Premium Carbon with Aerocore Design | ICS Technology Stealth Cable Routing | Stealth Dropout Design | Flat Mount Disc | 12 x 142mm Thru-Axle |
| Fork | Teammachine R 01 | 01 Premium Carbon | ICS Technology Stealth Cable Routing | Stealth Dropout Design | Flat Mount Disc | 12 x 100mm Thru-Axle |
| Seatpost | Teammachine R 01 | 01 Premium Carbon Seatpost | Length: 335mm (Sizes 47-51), 385mm (Sizes 54-56), 405mm (Sizes 58-61) | Offset: 0mm (Sizes 47-51) and 10mm (Sizes 54-61) |
| Front Derailleur | Riveted mount for front derailleur (2x drivetrain - 44.5mm chainline) |
| Rear derailleur | BMC derailleur hangers included: compatible with SHIMANO Direct Mount + standard SHIMANO or SRAM (Direct Mount) |
| Bottom bracket | Press-Fit 86.5mm Road (Ultra-deep Mariana design) |
| Brakes | Disc compatibility (Axle/Rear): 160mm front | 140mm or 160mm rear |
| Included accessories | Aerocore Bottle Cages | Shimano Direct Mount derailleur hanger | Classic SRAM/Shimano derailleur hanger | High and low ICS top cones, 3x10mm spacers, 2x3mm spacers |
| Weight | 1830 g (Size 54, as shown with all accessories) |
| Maximum weight | 110 kg (System limit) |
| ASTM Classification | Level 1 |
| Tire clearance | Up to 30 mm measured |
| Colors | Metallic Blue Purple / Carbon |
Geometries:
| Frame size | 47 | 51 | 54 | 56 | 58 | 61 |
| Seat tube (mm) | 418 | 463 | 499 | 519 | 541 | 570 |
| Top tube (mm) | 515 | 532 | 552 | 562 | 582 | 598 |
| Steering bushing (mm) | 108 | 133 | 149 | 165 | 184 | 211 |
| Base length (mm) | 410 | 410 | 410 | 410 | 410 | 410 |
| Steering angle (°) | 71.5 | 71.5 | 72.3 | 72.3 | 72.3 | 72.3 |
| Seat tube angle (°) | 74 | 74 | 73.5 | 73.5 | 73 | 73 |
| Wheelbase (mm) | 968 | 986 | 989 | 999 | 1015 | 1030 |
| Stack (mm) | 504 | 528 | 548 | 563 | 582 | 608 |
| Reach (mm) | 368 | 378 | 387 | 393 | 402 | 409 |
| Fork offset (mm) | 48 | 48 | 43 | 43 | 43 | 43 |
| Seatpost offset (mm) | 0 | 0 | 10 | 10 | 10 | 10 |
MORE INFORMATION
Features
| Bottom bracket mount | BB86.5 |
| Frame Caliper Mount | Flat Mount |
| Seat Clamp | Integrated |
